Specifications of Super Check Valve
The following is more detailed specfication about our Super Check Valves. Please refer to the dimensions, materials or the standard.

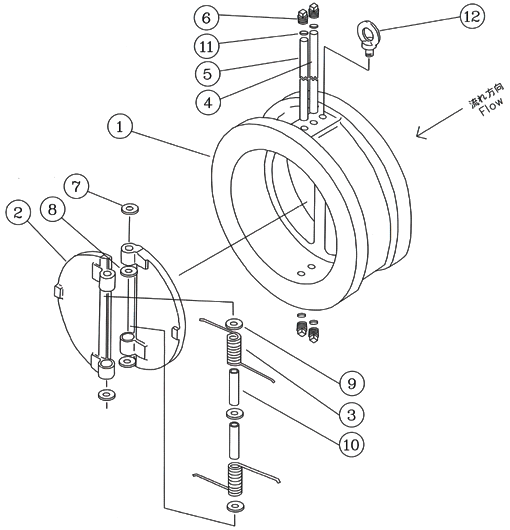

Disassembly drawing
Cautions
1. Up to 125A, the number of spring is one and eye bolt is not attached.2. From 150A to 550A, the structure is same as the illustrated above.
3. 600A and larger, the number of spring is four.
4. Stabilizer is installed only for cast iron valves.
5. The spring sleeve is option if DN is 350A and larger or the material of spring is INCONEL X-750.
6. The number of eye bolt is two for your safety if DN is 250A and larger.
| NO. | NAME OF PIECE |
|---|---|
| 1 | BODY |
| 2 | PLATE |
| 3 | SPRING |
| 4 | HINGE PIN |
| 5 | STOP PIN |
| 6 | PLUG |
| 7 | BODY BEARING |
| 8 | PLATE BEARING |
| 9 | SPRING BEARING |
| 10 | SPRING SLEEVE |
| 11 | STABILIZER |
| 12 | EYE BOLT |
Ordering guidance
The Figure No. is defined in the following PDF.
Dimentions
